JACK audio

What is JACK?

JACK (JACK Audio Connection Kit) is a low-latency audio server for Linux and macOS. Applications running on the same machine register named ports with the server, and any output port can be connected to any input port, like patch cables on a studio mixing desk.

You can use JACK to:

• route Liquidsoap's output to a monitoring system or an effects rack during a live performance,
• send audio to and from a DAW running on the same machine,
• record or inspect Liquidsoap's output without any audio hardware.

Liquidsoap provides the following JACK operators:

• input.jack receives audio from JACK.
• output.jack sends audio to JACK.
• jack.server.buffer_size() returns the current JACK buffer size, in samples.
• jack.server.sample_rate() returns the current JACK sample rate, in Hz.

Each input.jack and output.jack opens its own JACK client, named after the source's id. Set id explicitly to get a stable client name. The ports of a client are named {id}_0, {id}_1, etc., one per audio channel.

Latency

JACK processes audio in fixed-size blocks. The block size in samples is jack.server.buffer_size() and the duration of each block is:

buffer_size / sample_rate   (seconds)

For example, a 256-sample buffer at 44100 Hz gives roughly 5.8 ms of hardware latency.

The Liquidsoap clock follows the time reported by the JACK server. When the streaming thread is ahead, it sleeps until a JACK process callback reports that the target time has been reached. It then produces a Liquidsoap frame, writes it into a ringbuffer and goes back to sleep.

Liquidsoap's own frame duration (default ~20 ms, set via settings.frame.duration) determines how much audio it produces per tick. With the default, Liquidsoap produces several JACK buffer-lengths of audio at once; they are queued in an internal ringbuffer and consumed by JACK one block at a time. This works well for most setups.

Overruns and underruns

Each channel has a lock-free ringbuffer between Liquidsoap's streaming thread and JACK's real-time process thread. The ringbuffer holds up to settings.jack.max_latency seconds of audio (0.5 by default).

• Output underrun: JACK's callback fires but the ringbuffer has fewer samples than needed. The missing samples are replaced with silence and an output underrun message is logged. This happens when the streaming thread is late, for instance because of CPU load or a garbage collector pause.
• Input overrun: JACK's callback writes new samples but the ringbuffer is full because Liquidsoap has not consumed the previous ones yet. The excess samples are dropped and an input overrun message is logged. This happens when the streaming thread runs too slowly.

In both cases the remedies are:

1. Increase the JACK buffer size in the JACK server settings.
2. Make sure the machine has enough CPU headroom.
3. Align Liquidsoap's frame size with the JACK buffer, as described in the advanced section below.

OCaml and real-time audio

OCaml's garbage collector can pause the streaming thread at any time, while JACK's process callback runs on a strict schedule. Liquidsoap handles this as follows:

• Audio data goes through lock-free ringbuffers, so a garbage collector pause in the streaming thread leaves the JACK thread running.
• output.jack pre-fills its ringbuffer with one frame of silence (plus one JACK buffer when the sizes are not aligned) when it starts, to absorb short pauses.
• Underruns and overruns are logged and the stream keeps going.

For demanding setups, run jackd -R (real-time scheduling priority) and use a low-latency kernel.

Clocks and self-sync

The JACK server paces its process callback with the audio interface's hardware clock. input.jack and output.jack are therefore synchronization sources for their clock (see clocks). All the JACK operators connected to the same JACK server share one synchronization source, so an input.jack feeding an output.jack works out of the box.

When you connect a JACK source to an output that has its own hardware clock, for instance output.ao, the clock ends up with two synchronization sources and Liquidsoap reports a conflict. There are two ways to resolve it.

The first one is to set self_sync=false on the other output, so that it follows JACK's timing:

output.ao(self_sync=false, input.jack(id="input"))

This is simple, but the two devices still run on different hardware clocks and the drift between them eventually causes glitches.

The second one is to use buffer(), which places each side in its own clock:

jack-buffer.liq

# Cross from the JACK clock to another output using buffer():
output.ao(buffer(input.jack(id="input")))

# Or cross into the JACK clock from a non-JACK source:
output.jack(id="output", buffer(playlist("~/music")))

buffer() queues audio between the two clocks. It adds a small, configurable amount of latency and is the safe general-purpose approach.

Examples

Passthrough + playlist

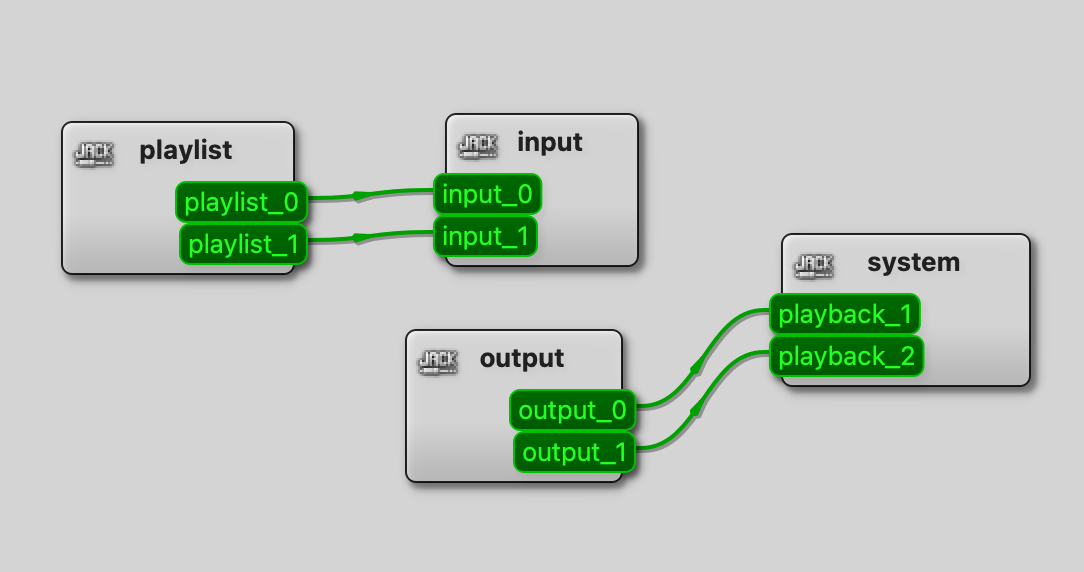

Route a JACK input straight back out to JACK, while also playing a playlist on a separate JACK client. The patchbay below shows how the three Liquidsoap clients (playlist, input, output) appear in a JACK client manager (e.g. QjackCtl): playlist feeds into input, and output goes to system playback.

jack-passthrough.liq

output.jack(id="output", input.jack(id="input"))

output.jack(id="playlist", fallible=true, playlist("~/music"))

Record from JACK to a file

Capture whatever is arriving on the JACK input port to a WAV file:

jack-record.liq

output.file(%wav, "/tmp/jack-recording.wav", input.jack(id="input"))

Connect to a named JACK server

If you run multiple JACK daemons, select the target with the server parameter:

jack-server.liq

output.jack(server="myjackd", id="playlist", fallible=true, playlist("~/music"))

Programmatic port connections

input.jack and output.jack have a ports() method that returns the list of JACK ports registered by the operator. input.jack returns [jack_input_port] and output.jack returns [jack_output_port]. The two types are distinct, so the type checker only lets you connect an output port to an input port.

Each port value has two methods:

• name() returns the full JACK port name, e.g. "out:out_0".
• connect(other) connects this port to a port of the opposite direction. On an output port, connect takes a jack_input_port. On an input port, connect takes a jack_output_port.

input.jack and output.jack also have a connect method that connects all their ports to another operator at once:

jack-connect.liq

#!/usr/bin/liquidsoap
# Send a sine wave to JACK and loop it back through a second JACK input,
# wiring the ports programmatically instead of using an external patchbay.

sine = sine(440.)

out = output.jack(id="out", sine)
re_in = input.jack(id="re-in")

# Wire out's output ports to re-in's input ports.
# The connection is deferred until both JACK clients have registered
# their ports (i.e. both operators have woken up).
out.connect(re_in)

You can call connect when the script is defined: Liquidsoap makes the actual jack_connect call once both operators have woken up and registered their JACK ports.

Connecting to server capture and playback ports

jack.server.capture() and jack.server.playback() give access to the physical hardware ports of the JACK server, system:capture_* and system:playback_* respectively. Each returns a record with a connect method that works like the one on input.jack and output.jack, so you can wire everything from your script:

jack-server-ports.liq

#!/usr/bin/liquidsoap
# Route audio from the system capture ports through Liquidsoap and back
# out to the system playback ports, wiring everything programmatically.

s = input.jack(id="vocals")
o = output.jack(id="main", fallible=true, s)

# Connect system:capture_* → vocals JACK input ports.
# jack.server.capture() discovers the physical IsOutput capture ports
# and defers the connection until the input.jack client has woken up.
jack.server.capture().connect(s)

# Connect main JACK output ports → system:playback_*.
# jack.server.playback() discovers the physical IsInput playback ports
# and defers the connection until the output.jack client has woken up.
jack.server.playback().connect(o)

A few details:

• In JACK's own naming, system:capture_* ports are output ports: they send audio from the hardware into the graph. system:playback_* ports are input ports: they send audio from the graph to the hardware. jack.server.capture() connects to an input.jack and jack.server.playback() connects to an output.jack, following this convention.
• jack.server.playback().connect(o) can also be called when the script is defined. The actual jack_connect call happens once the operator has woken up and registered its JACK ports.
• Both functions accept a server parameter for multi-daemon setups, like input.jack and output.jack.

connect matches port counts as follows:

• If one side has a single port, it is connected to every port on the other side.
• If both sides have the same number of ports, they are connected pairwise (channel 0 to channel 0, channel 1 to channel 1, etc.).
• Any other combination raises error.invalid at connection time.

Advanced: minimizing latency

This section is for setups tuned for minimum latency. Keep the default settings for general use.

End-to-end latency between Liquidsoap and JACK depends on how well the two frame sizes and sample rates align. There are three levels of tuning, in increasing order of aggressiveness.

Step 1: match sample rates

Set Liquidsoap's audio sample rate to JACK's. When the rates differ, Liquidsoap resamples every buffer, which costs CPU and adds latency:

settings.frame.audio.samplerate := jack.server.sample_rate()

Step 2: make Liquidsoap's frame a multiple of the JACK buffer

Liquidsoap produces audio in fixed-size frames (default ~20 ms). Set the frame duration so that its sample count is an exact multiple of the JACK buffer size. Reads and writes then stay aligned to JACK buffer boundaries, and output.jack skips the extra JACK buffer of silence padding:

# Example: 4 times the JACK buffer
settings.frame.duration :=
  4. * float_of_int(jack.server.buffer_size()) /
    float_of_int(jack.server.sample_rate())

Step 3: match exactly one JACK buffer

On a well-configured system (real-time kernel, jackd -R, ample CPU headroom) you can set Liquidsoap's frame duration to exactly one JACK buffer. Liquidsoap then produces audio one JACK buffer at a time, which reduces end-to-end latency to a single buffer length (e.g. ~5.8 ms at 44100 Hz with a 256-sample buffer):

jack-low-latency.liq

video.frame.rate := 0
settings.frame.duration :=
  float_of_int(jack.server.buffer_size()) /
    float_of_int(jack.server.sample_rate())

output.jack(id="playlist", fallible=true, playlist("~/music"))

video.frame.rate := 0 disables the video frame rate constraint so that the frame duration is determined solely by the audio calculation above.

On an underpowered or misconfigured machine this setting causes frequent underruns. Use it only when you have a specific latency target and a stable, well-tuned system.
